High-Capacity Assembled Catch Can Kit for Mazda RX-7 FD3S Turbo Applications

Description

This listing is for the JP3 Motorsports XL catch can kit for the Turblown Oil Filler Neck.  This kit includes -8an push lock hose and fittings that are pre-assembled and ready to install.  This kit has two hose routes that allow for optimum crankcase venting.  The first hose is from the oil fill neck to the catch can.  The second hose is from a hardline attached to the rear iron oil drain (used with the OEM twin turbos but blocked off when running single turbo).  The video overview below goes into this setup in detail.

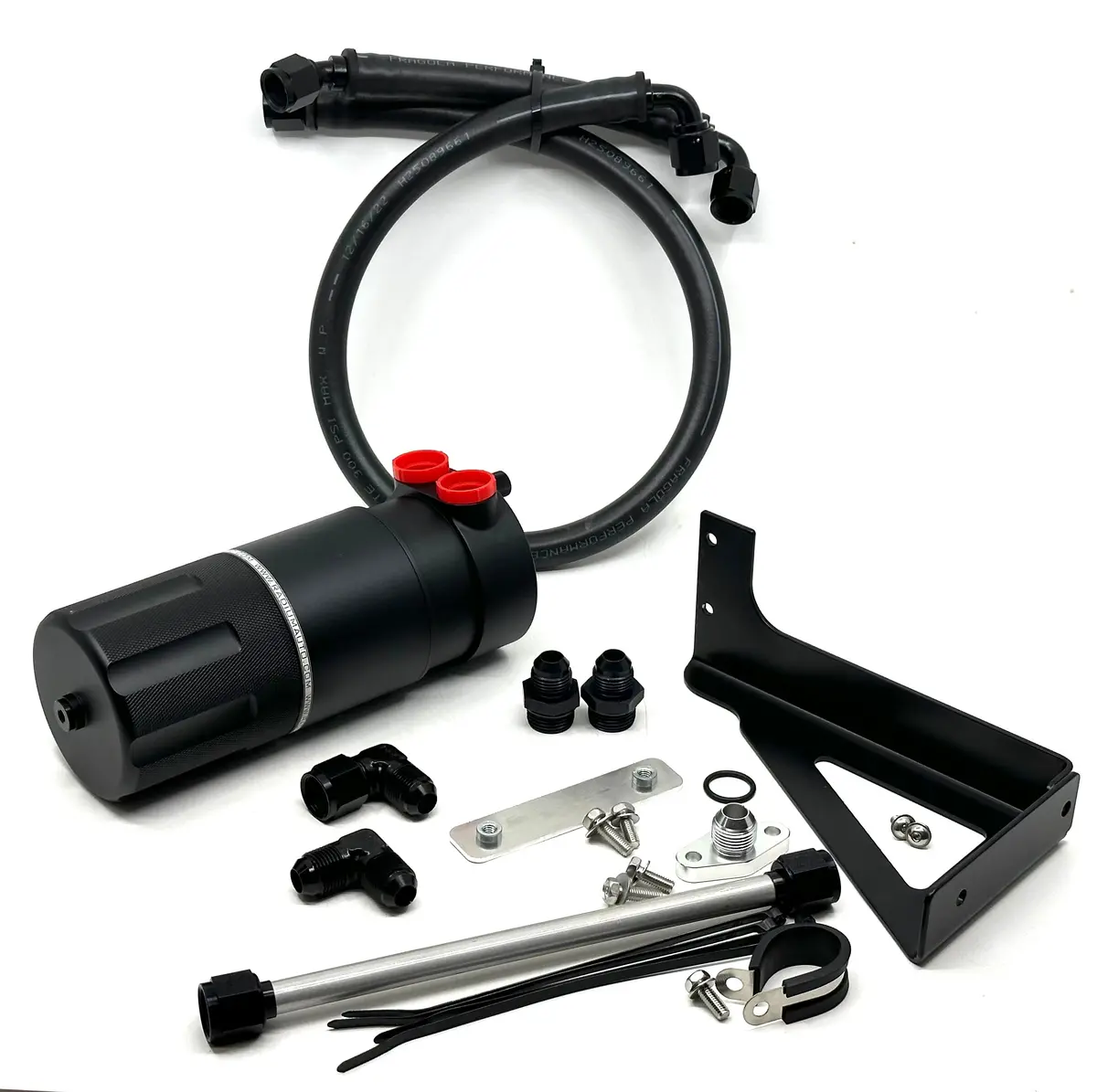

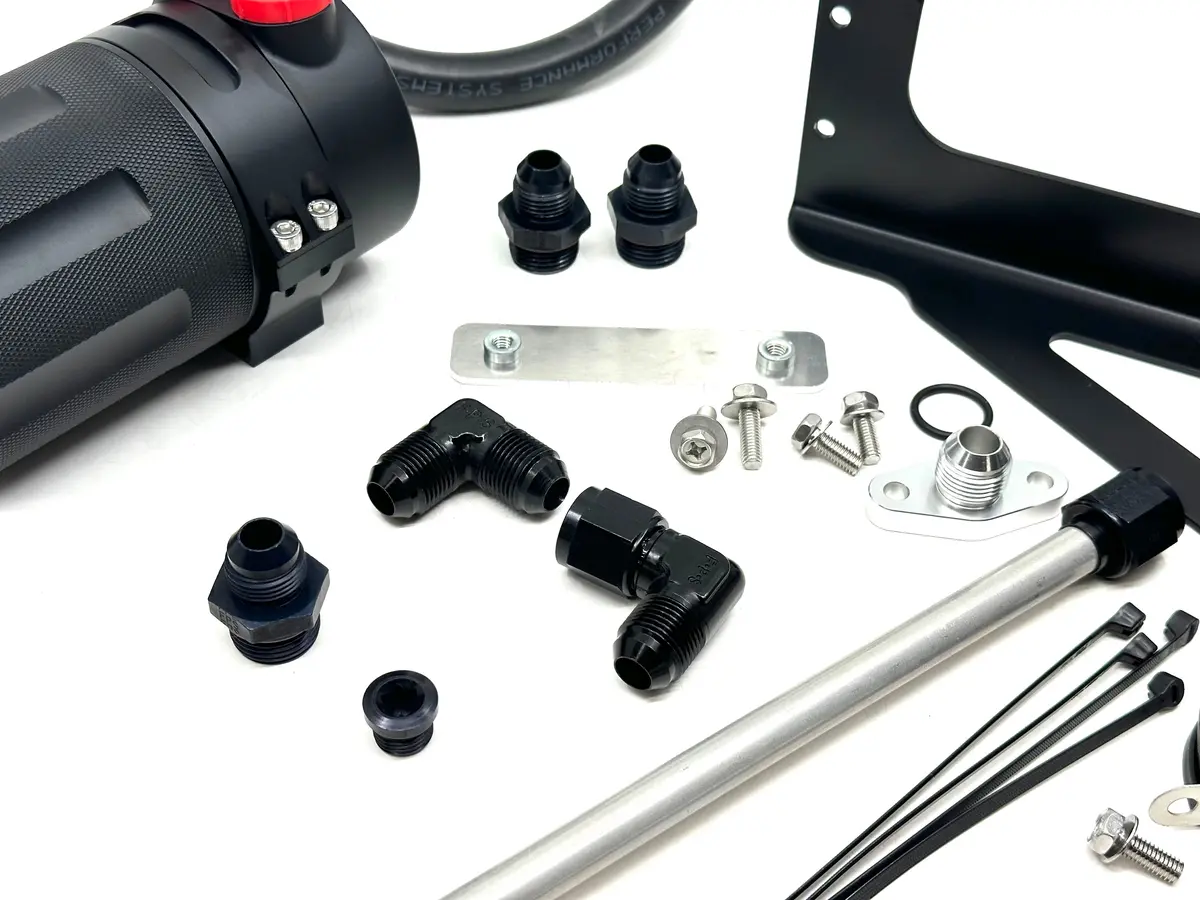

Includes:

• Radium Engineering VTA (Vent to atmosphere) Competition Catch Can XL – (20-0771)
• JP3 Motorsports Custom Stainless steel bracket mount with aluminum receiver bracket
• -8an Push Lock Hose and fittings pre-assembled
  • Includes additional 2 fittings for Turblown oil filler neck
    • -10an orb to -8an male
    • -6an plug
• 1/2″ Aluminum hardline with fittings
• CNC Aluminum drain flange with -8an male thread (includes oring)
• Stainless P clamp
• Stainless hardware
• Zip Ties

NOTE: Kits are intended to route to the front of the Turblown oil filler neck.  Oil filler neck is not provided.

Please allow 1-2 weeks for kits to be assembled.
